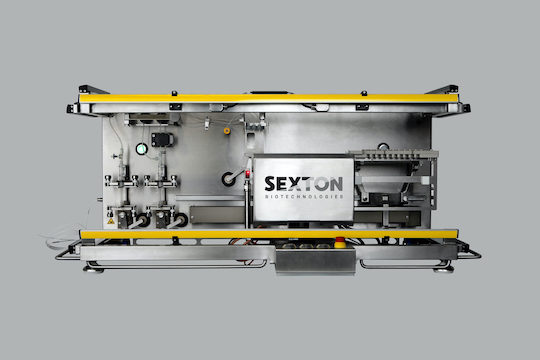

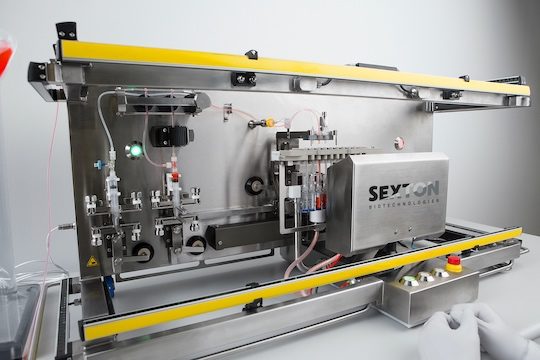

AF500 AUTOMATED FILL AND SEAL SYSTEM

REQUEST MORE INFO

From concept to commercialization, the CealSeal AF-500 delivers the automation difference in a precision engineered and GMP compatible fill-finish system. For cell and gene therapy developers and manufacturers, the AF-500 provides the path to scale up and standardize through increased accuracy, speed, and productivity. Its versatile design for controlled environments include benchtops, biosafety cabinets, or an isolator.

SPECIFICATIONS
DETAILS
  • Fill System dimensions: 117.5 cm wide x 50.7 cm high x 50 cm deep
  • Electronic control cabinet dimensions: 60 cm wide x 45.1 cm high x 21 cm deep
  • Fill System weight: 95 kgs
  • Electrical cabinet weight: 30 kgs
  • Electricity: Voltage: 120 / 230V+PE, Electrical Power: 120V / 8A (60Hz), 230V / 5A (50Hz)

For use in biosafety cabinets or isolators

Compatible with vaporized hydrogen peroxide sterilization

  • Automated filling and sealing of vials (ten 2 mL or 5 mL vials per set) and CellSeal Connect (four 2ml or 5ml vials per set)
  • Fills and seals approx. 500 CellSeal vials in 90 minutes
  • Transfers source material through needleless Luer fittings on the nozzle and the vials
  • Customizable vial fill volume
  • Filling accuracy is >99% for fill volumes from 0.8 mL to 5 mL
